Description

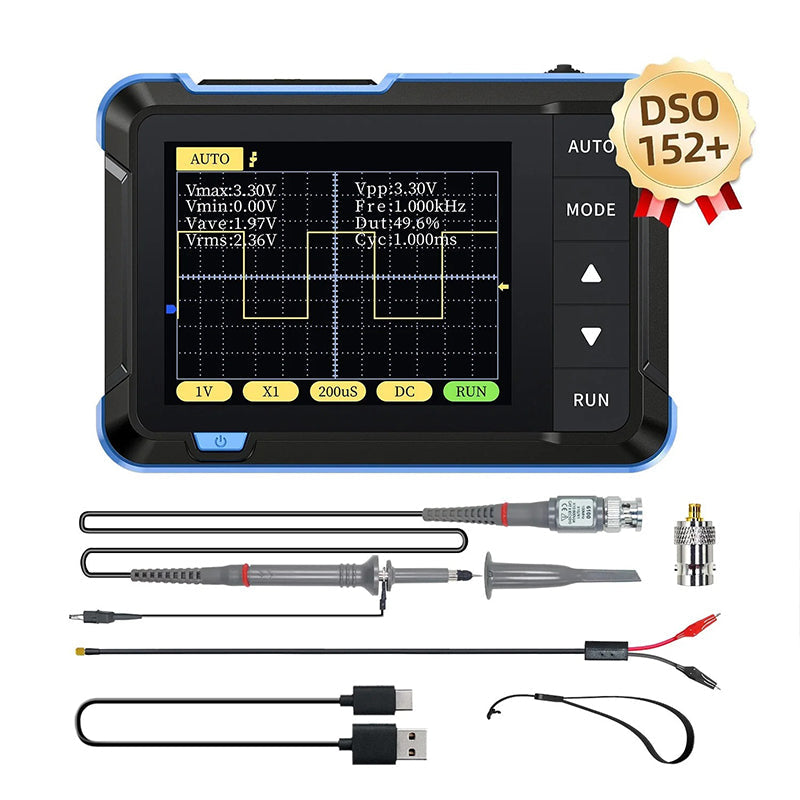

Handheld Digital Oscilloscope, Pocket Oscilloscope with Rechargeable Battery, Electrician Tools for Maintenance
-
Waveforms without fiddling: one-key AUTO setting of all parameters displays the waveform without cumbersome adjustment
-

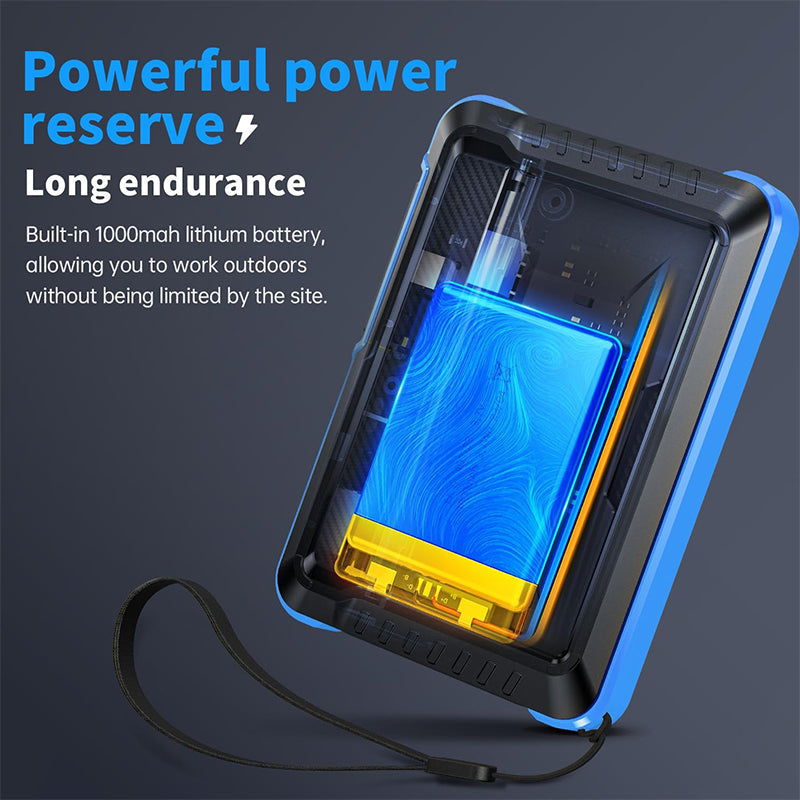

Hours of use per charge: the built-in 1000 mAh lithium battery runs about 4 hours continuously after a full charge
-
Nothing to assemble or weld: it is an assembled finished machine, lightweight and easy to carry
-

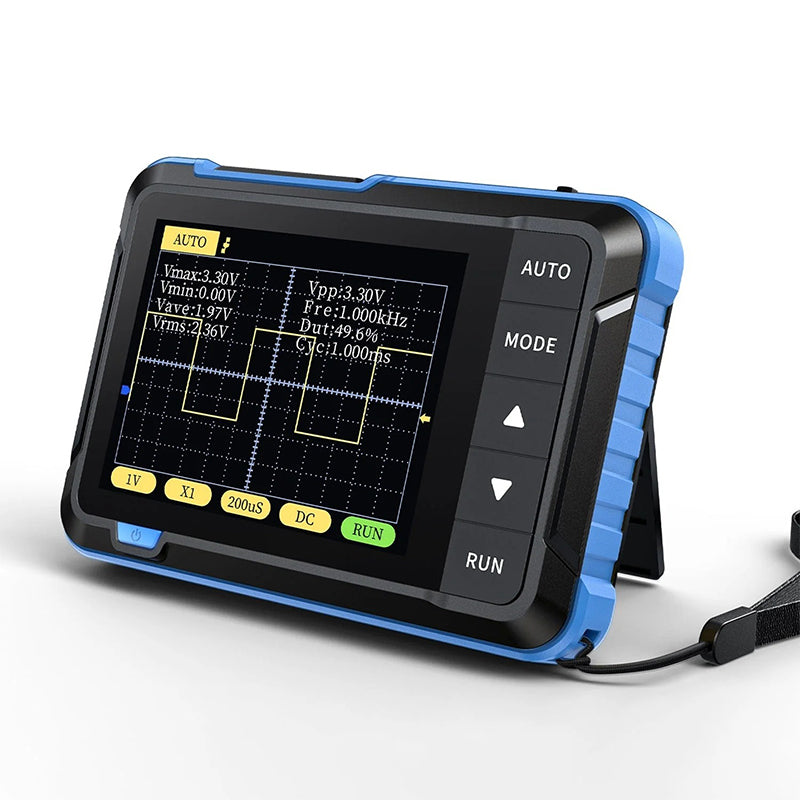

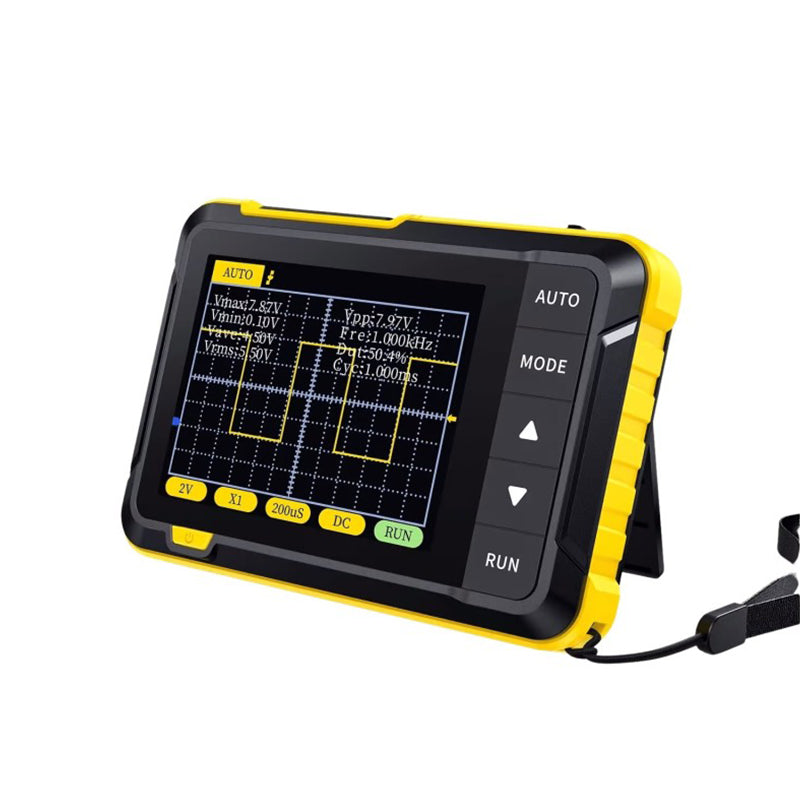

Easy to read at a glance: the 2.8 inch LCD display has a 320*240 resolution that is clear and easy to observe
-
Analog and digital signals alike: the full trigger function (AUTO/Normal/Single) suits periodic analog and aperiodic digital signals
Checking a signal should not mean setting up a bench. This handheld digital oscilloscope is an assembled finished machine, lightweight and easy to carry, so there is no assembling or welding, and the one-key AUTO setting displays the waveform without cumbersome adjustment.
This pocket oscilloscope has a real-time sampling rate of 2.5 MS/s and a 200 KHz bandwidth. As a handheld oscilloscope for the maintenance industry and R&D education industry, these electrician tools measure up to 800 VPP, equal to 280 V AC, with the 10 x probe, and voltages up to 400 V can be measured. Stay within the stated voltage limits.
Why choose Fewpe
Pocket Oscilloscope
| Feature |
Fewpe |
Others |
| One-key AUTO shows the waveform |
✓ |
Manual setup |
| Assembled finished unit, no welding |
✓ |
Kit to build |
| Built-in battery lasts about 4 hours |
✓ |
Varies |
| Type-C charging and data transfer |
✓ |
Varies |
| Firmware upgrade over Type-C |
✓ |
✕ |
| 30-day easy returns |
✓ |
Varies |
Key Features
This mini oscilloscope packs sampling speed, triggering, display and charging into one pocket-sized body:
-
Sampling Speed: a real-time sampling rate of 2.5 MS/s and a 200 KHz bandwidth, with the 10 x probe measuring up to 800 VPP (equal to 280 V AC), and voltages up to 400 V can be measured.
-
Trigger And Display: a full trigger function (AUTO/Normal/Single) works for periodic analog and aperiodic digital signals, and the 2.8 inch (7.1 cm) LCD has a 320*240 resolution that is clear and easy to observe.
-
Portable Build: an assembled finished machine, lightweight and easy to carry, avoids assembling and welding problems and serves the maintenance industry and the R&D education industry.
-

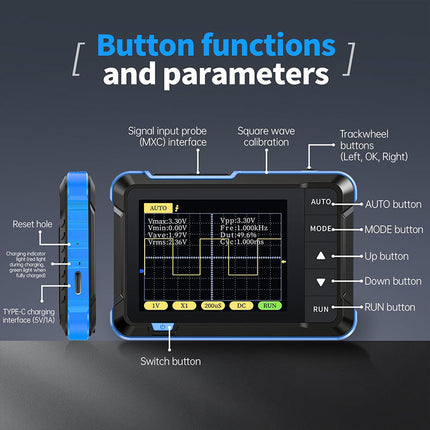

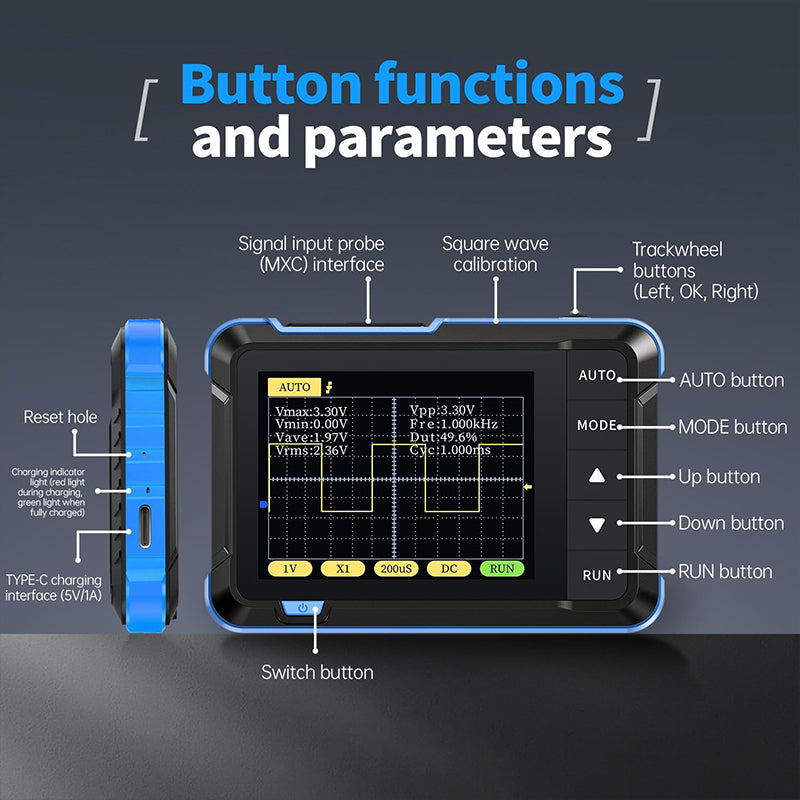

One-Key AUTO: the one-key AUTO setting configures all parameters so the waveform shows without cumbersome adjustment, and a long press on the AUTO button calibrates the baseline quickly for fast waveform measurement.
-

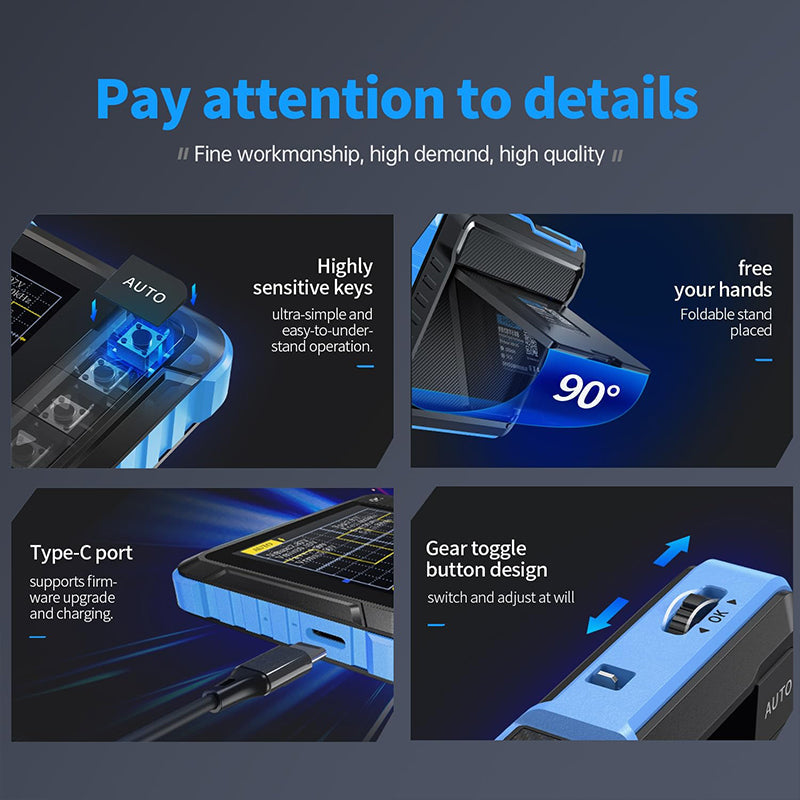

Battery And Type-C: the built-in 1000 mAh lithium battery runs about 4 hours continuously after a full charge, and the Type-C interface supports charging, data transmission and firmware upgrade.
Specifications
-
Real-time sampling rate: 2.5 MS/s
-
Bandwidth: 200 KHz
-
Maximum measurable voltage with 10 x probe: 800 VPP
-
AC equivalent: 280 V AC
-
Measurable voltage: up to 400 V
-
Display: 2.8 inch (7.1 cm) LCD
-
Resolution: 320*240
-
Battery capacity: 1000 mAh
-
Continuous runtime: about 4 hours
-
Trigger modes: AUTO/Normal/Single
-
Charging interface: Type-C
-
Colors: yellow, blue
-
Signals: periodic analog and aperiodic digital signals
-
Type-C functions: charging, data transmission and firmware upgrade
-
Applications: maintenance industry and R&D education industry
-
Build: assembled finished machine
Package Includes:
- 1 x Compact Handheld Digital Oscilloscope
How to Use
- Switch on the one-key AUTO setting and the screen draws the measured signal for you, with no manual tuning.
- Press and hold the AUTO button to calibrate the baseline quickly.
Right for you if
-
✓You check signals away from a bench — a lightweight, assembled unit that is easy to carry
-
✓You work in maintenance or R&D education — made for the maintenance industry and R&D education industry
-
✓You want a reading fast — one-key AUTO setting and a long press to calibrate the baseline
-
✓You measure higher voltages — the 10 x probe reaches 800 VPP, equal to 280 V AC
If two or more of these sound like you, this is the one.
FAQs
Q: What sampling rate and bandwidth does it have?
A: The real-time sampling rate is 2.5 MS/s and the bandwidth is 200 KHz.
Q: How long does the battery last?
A: The built-in 1000 mAh lithium battery runs about 4 hours continuously after a full charge, and the Type-C interface handles charging.
Q: What voltage can it measure?
A: With the 10 x probe it measures up to 800 VPP, equal to 280 V AC, and voltages up to 400 V can be measured.
Q: Does it need assembly?
A: No. It is an assembled finished machine, so there is no assembling or welding.
Q: Which signals does it handle?
A: The full trigger function (AUTO/Normal/Single) works for periodic analog signals and aperiodic digital signals.
