Description
Door Lock Installation Kit, Door Knob Installation Kit with Hole Saws for Wood Doors
-
No guesswork on hole placement: the backset markings for 2-3/8 and 2-3/4 inch line up in seconds
-
One guide, four fast steps: position, bore, drill the latch, then fit the lockset and test it
-
Built for real wood doors: bedroom, bathroom, closet, and rental-property doors all take the same door lock jig
-
Cut clean through wood-based material: solid wood, plywood, particle board, and drywall all cut cleanly with the included saws
-
Room to go further: the expanded kit adds a mortising jig, router bit, and hex key for detailed installs
Installing a new door lock without the right guide usually means crooked bores and a scarred door face, but this door lock installation kit lines up every cut before the drill even touches the wood. The adjustable plastic guide clamps onto the door, and the marked backset positions match the two sizes almost every interior door uses, so the hole saw goes in exactly where it should the first time. It is built for wood: the guide and hole saws are made for solid wood, plywood, particle board, and drywall doors, not glass, tile, or metal ones.
The standard hole saw set covers the main bore and the latch hole in one pass, and the expanded configuration adds a mortising jig, router bit, and hex key for hinges and strike plates on bigger door-hardware projects — a power drill and mounting screws are the only things you still need to bring.
Why choose Fewpe
Door Lock Jig Kit
| Feature |
Fewpe |
Others |
| Marked positions for two common backsets |
✓ |
Mark by hand |
| 2-1/8 inch main hole saw included |
✓ |
Extra cost |
| 1-inch latch hole saw included |
✓ |
✕ |
| Four-step guide speeds up installation |
✓ |
Guesswork |
| Expanded set adds a mortising jig and hex key |
✓ |
Basic kit only |
| 30-day easy returns |
✓ |
Varies |
Key Features
-

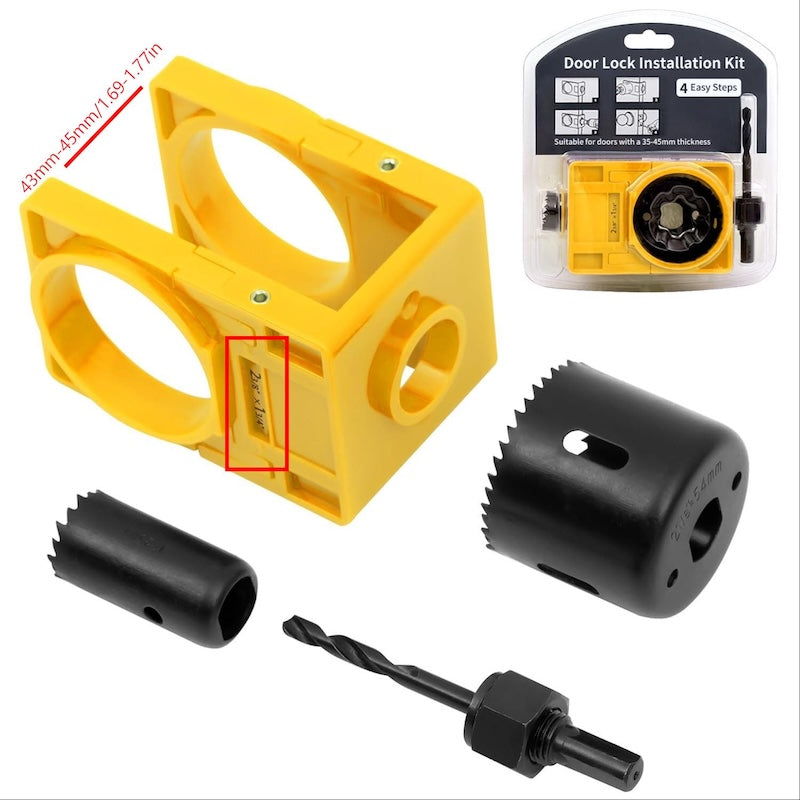

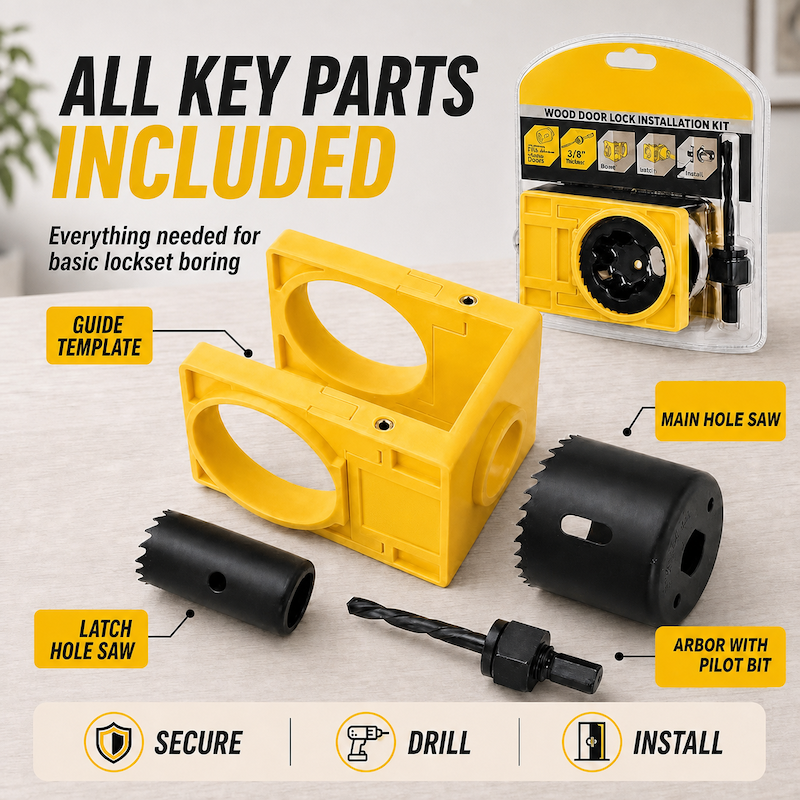

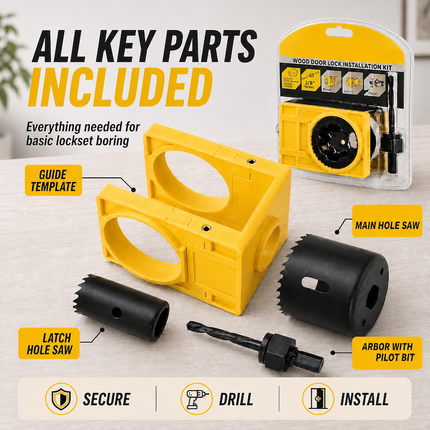

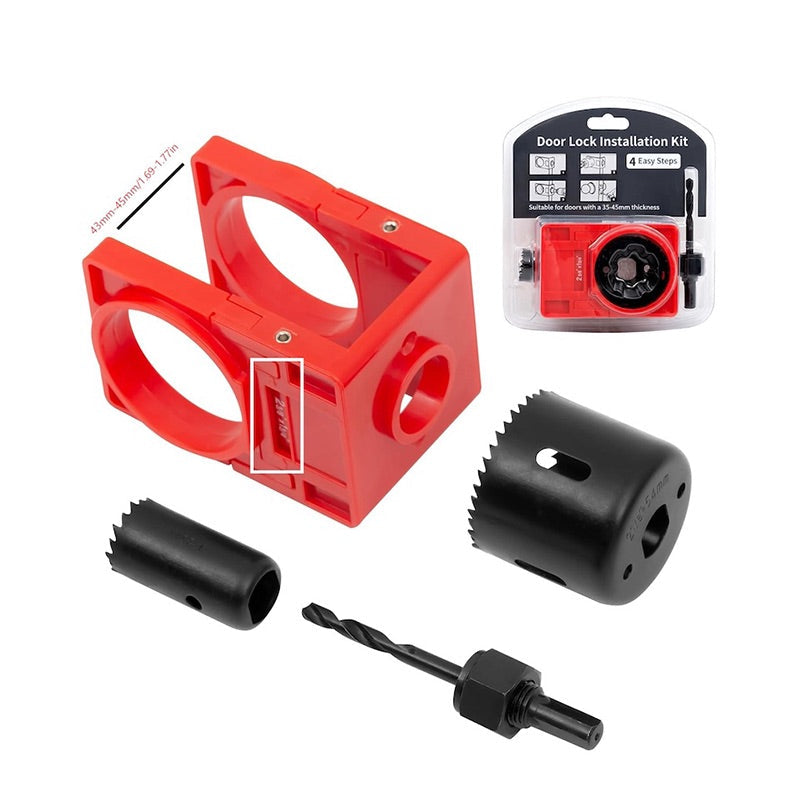

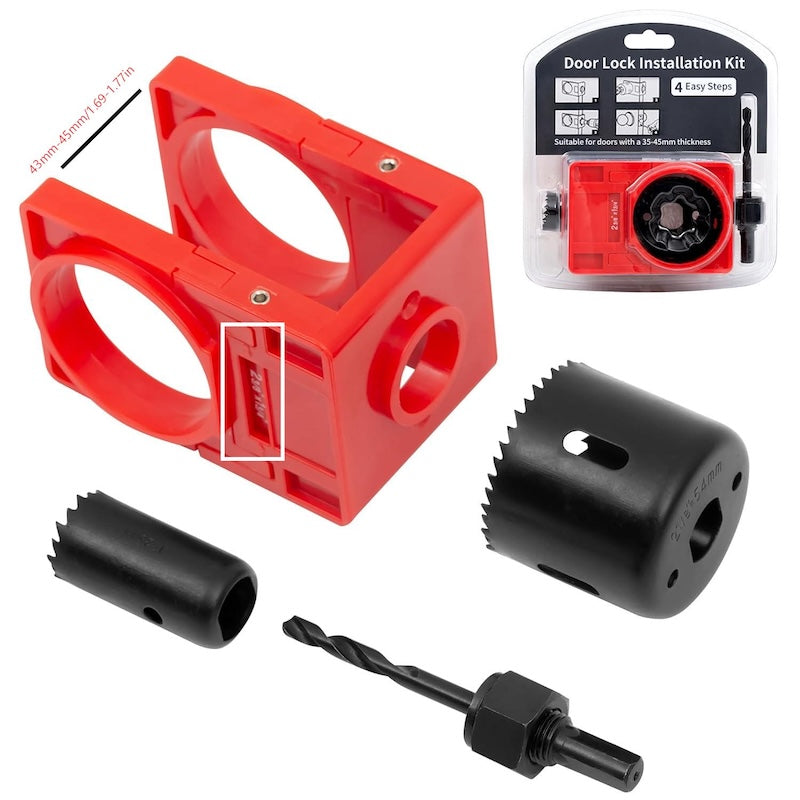

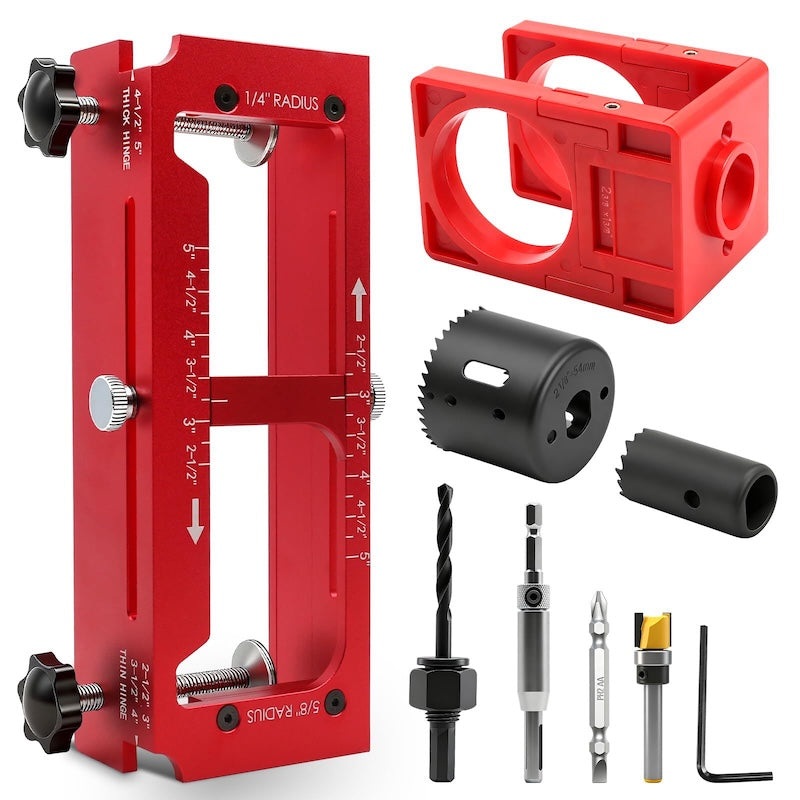

Kit Configurations: Standard red or yellow kits pack one adjustable plastic guide, a 2-1/8-inch (54 mm) main hole saw, a 1-inch (25 mm) latch hole saw, and a pilot-bit arbor, while the expanded set adds a metal mortising jig, extension holder, screwdriver bit, router bit, and hex key for deeper installs; a power drill and mounting screws are not included.
-
Four-Step Installation: Secure the guide to the door, bore the main hole halfway from each side, cut the latch hole from the side opening, then fit the latch and lockset and test it.
-

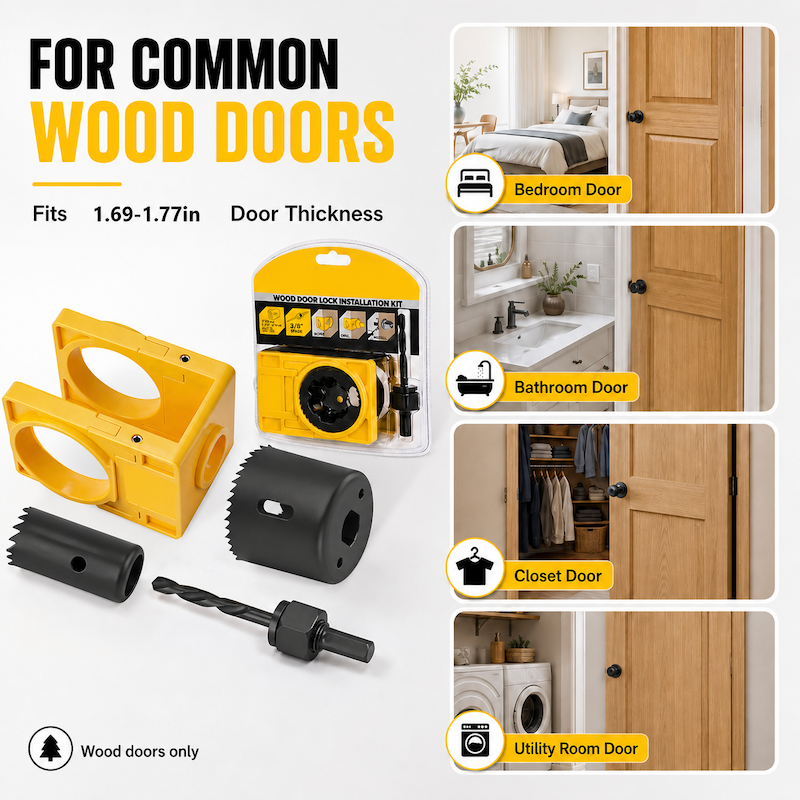

Built For Wood Doors: The template suits bedroom, bathroom, closet, utility-room, and rental-property doors, replacing old locks or adding new knobs on interior wood doors only.
-
Marked Backset Positions: Guide markings match common 2-3/8-inch and 2-3/4-inch backsets, so you measure the door and backset, line up the marking, and confirm the fit before drilling.
-
Cutting Range: The hole saws cut solid wood, plywood, particle board, and drywall, but skip glass, tile, granite, metal, brick, stone, stainless steel, and other hard or fragile surfaces.
Specifications
-
Main Hole Saw Size: 2-1/8-inch (54 mm)
-
Latch Hole Saw Size: 1-inch (25 mm)
-
Backset Markings: 2-3/8-inch and 2-3/4-inch
Package Includes:
- 1 × Door Lock Installation Drilling Kit

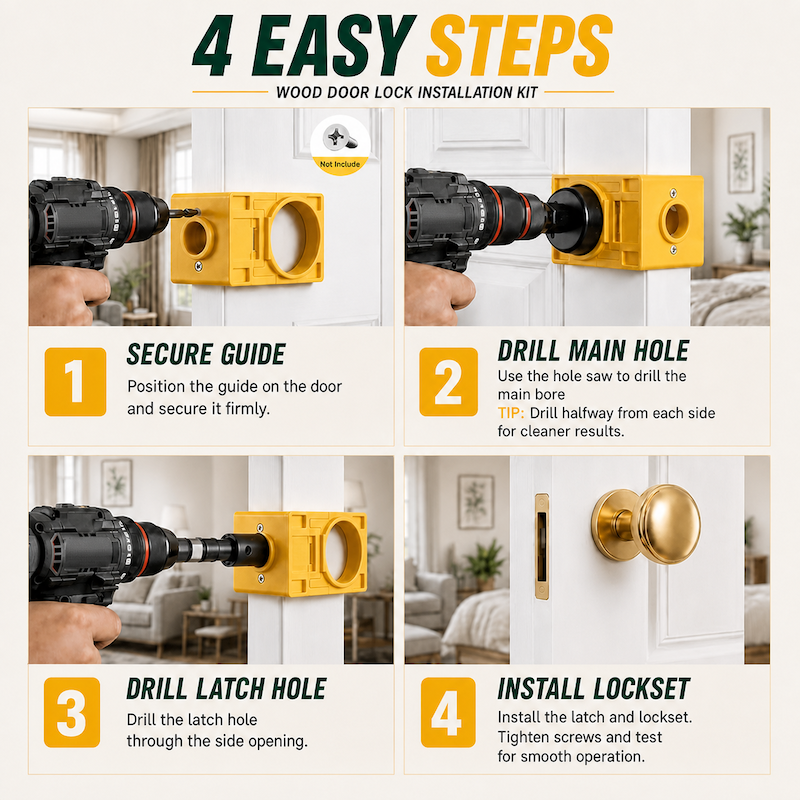

How to Use
- Set the guide against the wood door and fasten it in place with the right screws.
- Bore the main hole halfway through from each face for a cleaner opening.
- Cut the latch hole from the side opening.
- Install the latch and lockset, then test the operation to confirm it runs smoothly.
Right for you if
-
✓You are replacing a lock yourself without calling a locksmith — the guide lines up the bore before you drill
-
✓Your door is solid wood, plywood, or particle board — the hole saws are made for exactly that
-
✓You want the backset right the first time — markings cover both 2-3/8 and 2-3/4 inch
-
✓You are working on more than one door — the expanded kit adds a mortising jig and hex key
If two or more of these sound like you, this is the one.
FAQs
Q: What sizes does the hole saw kit cut?
A: A 2-1/8-inch (54 mm) main hole saw and a 1-inch (25 mm) latch hole saw, sized for standard interior locksets.
Q: Does the guide cover common backsets?
A: It has marked positions for the two most common backsets, 2-3/8 inch and 2-3/4 inch.
Q: Will this work on a metal or glass door?
A: No. The guide and hole saws are made for solid wood, plywood, particle board, and drywall doors only.
Q: Is a drill included?
A: No. A power drill and mounting screws are not included, so bring your own.
Q: How many steps does installation take?
A: Four: position the guide, drill the main bore, drill the latch hole, then fit the lockset and test it.
